Clamshell Grab Hydraulic Pump Replacement

Clamshell Grab Hydraulic Pump Replacement – Professional Marine Services by VietNam Shiprepair

Is your radio-remote or hydraulic Clamshell Grab suffering from a failed hydraulic pump? VietNam Shiprepair offers fast, expert Marine services for grab repairs anywhere in Vietnam and Southeast Asia. On October 21, 2025, our riding team successfully replaced the complete hydraulic pump on a 14 m³ clamshell grab at Cai Mep anchorage in just 8 hours – zero delay to the vessel’s schedule. We provide 24/7 Marine services at all major ports and anchorages including Cai Mep, Vung Tau, Dung Quat, Nghi Son, and Singapore OPL. All repairs are performed to IACS and class society standards (DNV, NK, ABS, LR). Trust VietNam Shiprepair – your reliable partner for Clamshell Grab repairs.

Failed hydraulic pump removed from 14 m³ clamshell grab at Cai Mep anchorage

Why Hydraulic Pump Failure is Critical for Clamshell Grabs

The hydraulic pump is the heart of every modern Clamshell Grab. When it fails, the grab cannot close properly, dramatically reducing discharging rates and causing expensive delays. Fast, professional Marine services are essential to get the grab back into full operation. VietNam Shiprepair’s riding teams carry stock pumps (Parker, Rexroth, Kawasaki, and OEM Chinese) and can mobilise within hours.

Step-by-Step Hydraulic Pump Replacement Process

Our experienced technicians follow this proven procedure:

1. Safe positioning of the grab on deck with wooden supports

2. Full depressurisation and isolation of the hydraulic system

3. Removal of high-pressure hoses and mounting bolts

4. Careful extraction of the old pump (120–180 kg) using a deck crane

5. Installation of the new, class-approved hydraulic pump with correct torque settings

6. Replacement of all seals and O-rings

7. Refilling with fresh ISO VG46 hydraulic oil and complete air bleeding

8. Pressure testing (180–220 bar working, 280 bar max)

9. No-load and full-load function tests (1.5 × SWL)

10. Final handover with class surveyor attendance (DNV/NK/ABS) if required

The entire job is normally completed within 6–10 hours by a 4–5 man team.

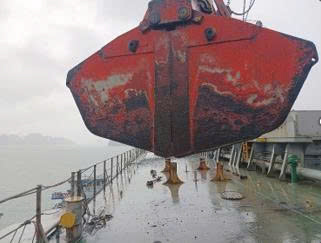

New hydraulic pump successfully installed and tested on 14 m³ clamshell grab.

VietNam Shiprepair – Your 24/7 Grab Repair Specialist

• Stock of most common hydraulic pumps for 6–36 m³ grabs

• Riding teams available Vietnam-wide and Singapore OPL

• Original and OEM spare parts with class certificates

• Full documentation and class attendance arranged

• Competitive fixed prices – no hidden costs

Whether you operate SMAG, NMK, Peiner, IHI, Fukushima or Chinese-built grabs, we have the expertise and parts ready.
