Steel Works at Quy Nhon Anchorage – Tank Top Plate Repair by VietNam Shiprepair
Is your Panamax bulk carrier facing a serious tank top puncture in the cargo hold at Quy Nhon Anchorage? VietNam Shiprepair provides professional Steel Works and Marine Services, specializing in urgent tank top plate replacement under full NKK Class supervision. We recently completed the repair of a punctured tank top on a Panamax bulk carrier at Quy Nhon Anchorage – a key central location in South Central Vietnam – after cargo fell back into the hold during loading operations and caused structural damage. The work was executed with NKK-approved steel, certified welding procedures, and qualified welders to restore complete watertight integrity between the cargo hold and ballast tanks, preventing further operational delays and commercial losses for the shipowner, cargo interests, and charterers.
All repairs comply with IACS and IMO standards—learn more at IACS Standards. Our Marine Services are available at Quy Nhon Anchorage and across Vietnam, including Ho Chi Minh Port and Anchorage, Hai Phong Port, and Phu My Port – Vung Tau Anchorage, with full capability to support vessels at any port or anchorage nationwide.

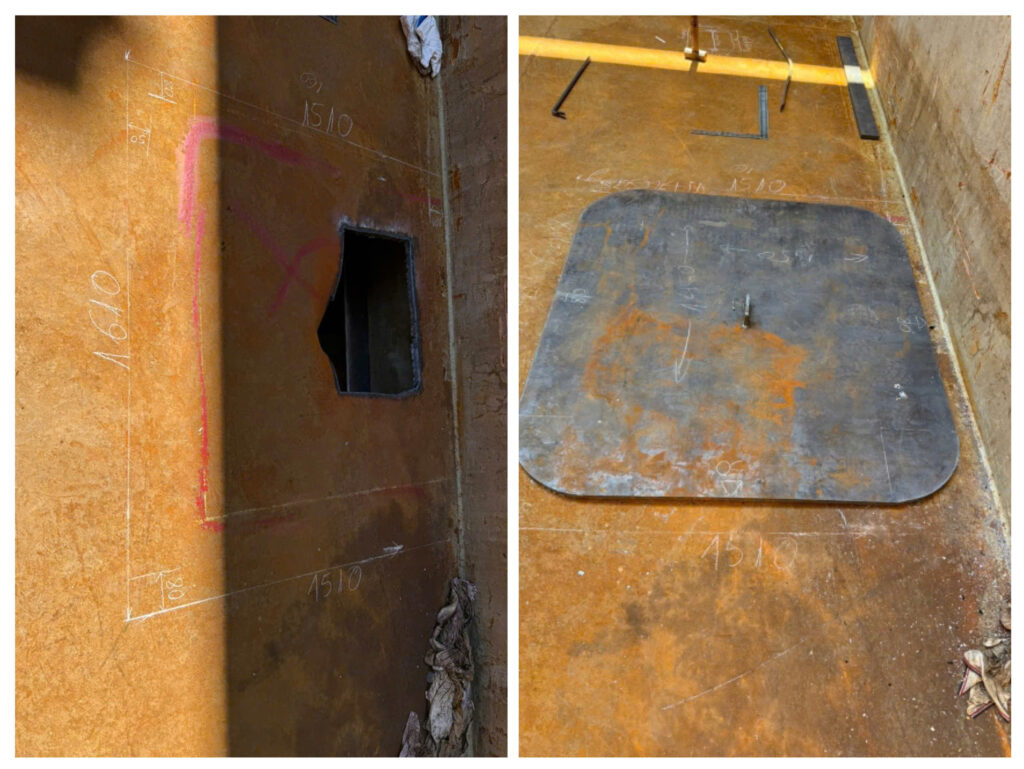

Punctured tank top plating in the cargo hold of a Panamax bulk carrier at Quy Nhon Anchorage before Steel Works.
Importance of Urgent Steel Works for Tank Top Integrity
The tank top plating forms a critical structural and watertight boundary between the cargo hold and the underlying ballast tanks. On a Panamax bulk carrier, any puncture caused by falling cargo immediately compromises this separation. Failure to restore full watertight integrity can lead to cargo contamination, ballast system issues, and serious navigational risks. In addition, prolonged delays create significant commercial losses for all parties involved. Professional Steel Works by VietNam Shiprepair restore structural strength and complete isolation of the ballast tanks, ensuring safe navigation and cargo protection while minimizing downtime.
Professional Steel Works Process under NKK Class Supervision
VietNam Shiprepair executed the following controlled process for the tank top plate replacement at Quy Nhon Anchorage:
- Conducted a detailed joint inspection with the NKK surveyor to assess the extent of the puncture and define the precise renewal area.
- Submitted and obtained NKK approval for the repair plan, Welding Procedure Specification (WPS), welder qualifications, and material certificates.
- Erected safe staging and implemented full hotwork safety measures inside the cargo hold.
- Cut out the damaged tank top plating in the affected area.
- Fitted and installed new NKK-approved steel plate matching the original thickness and grade.
- Performed welding by NKK-certified welders using approved procedures.
- Carried out Non-Destructive Testing (NDT), including Ultrasonic Testing (UT) and Penetrant Testing (PT), on all welds.
- Conducted watertight testing to confirm complete isolation between the cargo hold and ballast tanks.
- Applied anti-corrosion coating and completed final visual and dimensional inspection.
- Obtained final NKK surveyor endorsement for the completed Steel Works.
This systematic approach restored full structural and watertight integrity in the shortest possible time.

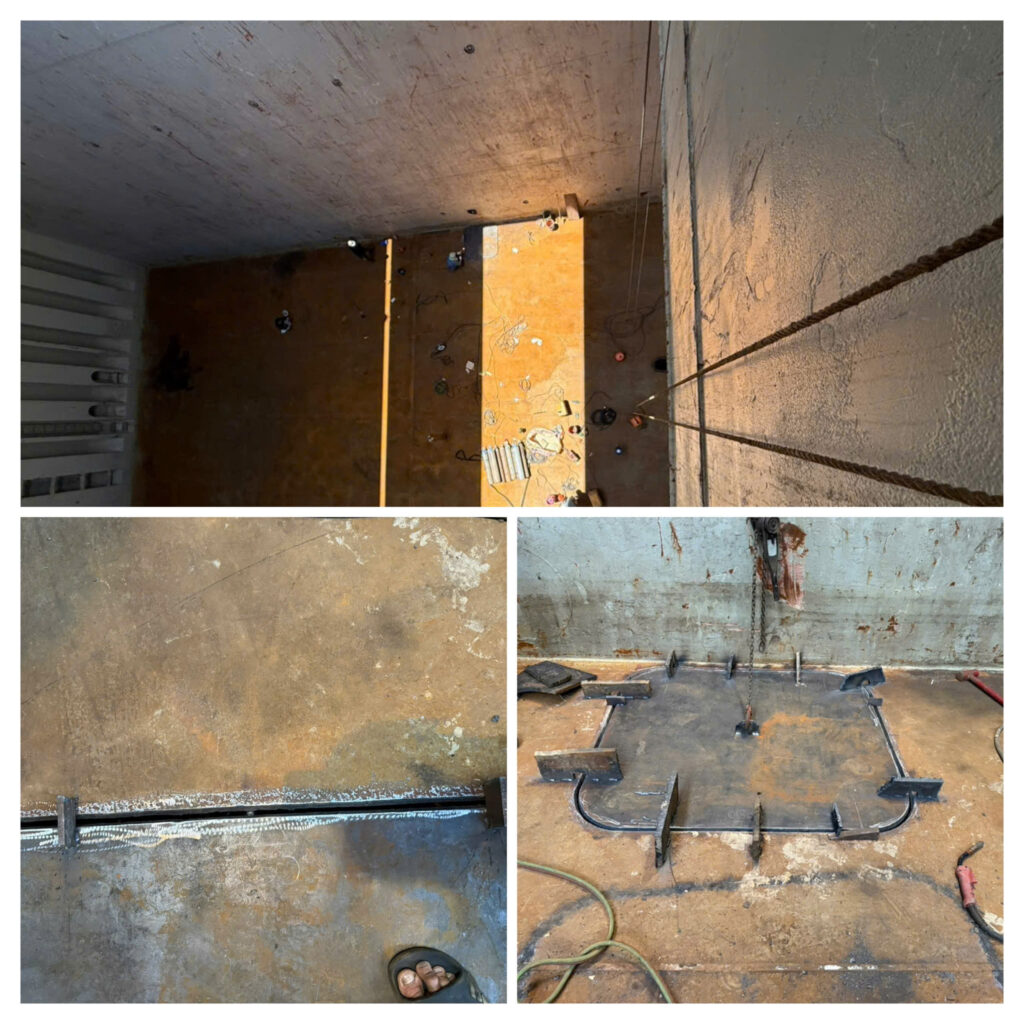

Team performing Steel Works – cutting and welding new tank top plate under NKK supervision at Quy Nhon Anchorage.
Minimizing Downtime with Efficient Marine Services
A punctured tank top can quickly escalate into major commercial losses due to delayed operations. VietNam Shiprepair’s Marine Services focus on rapid mobilization, precise planning, and controlled execution so that critical Steel Works are completed efficiently while fully satisfying NKK Class requirements and restoring the vessel to operational status as soon as possible.
VietNam Shiprepair’s Nationwide Marine Services Network
In addition to specialized Steel Works, VietNam Shiprepair provides comprehensive Marine Services across Vietnam, including:
-
- Underwater cleaning
- In-water survey
- Underwater Repairing
- Motor Re-winding
- Machinery/Recondition Engine Component
- Turbocharger Overhauling
- Main Engine Overhauling & Repairing
- Hull Repairing (Steel Works and Piping replacing)
- Engine services
- VDR services
- Wood Chips Vessel: Feeder Conveyor Belt Bonding Services ( Hot bonding method & Cold bonding Method)
- Hydraulic System Services: Hydraulic Pump Overhauling, Hatch Cover Piston Overhauling,…v.v
We support vessels at Quy Nhon Anchorage, Ho Chi Minh Port and Anchorage, Hai Phong Port, Phu My Port – Vung Tau Anchorage, and all other ports and anchorages throughout Vietnam.

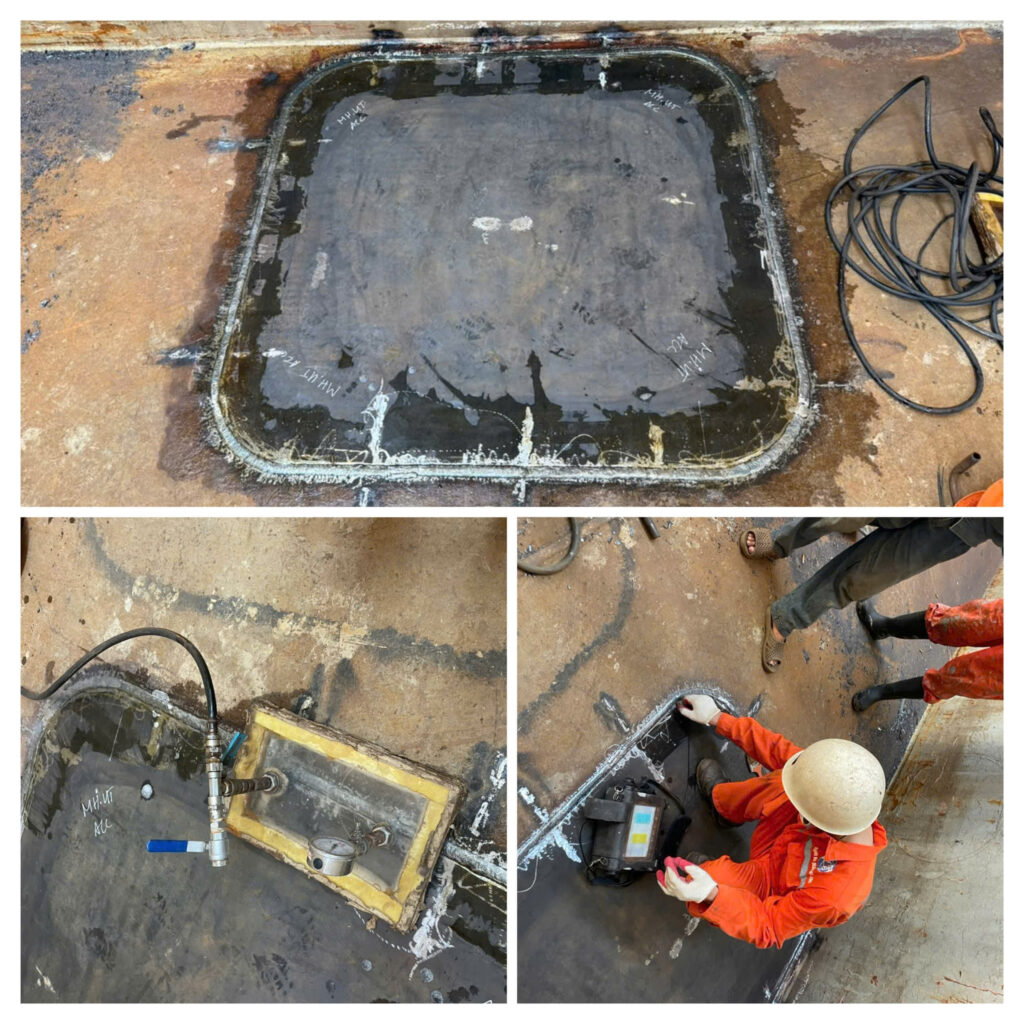

Completed Steel Works – renewed tank top plating ready for cargo operations at Quy Nhon Anchorage.
Benefits of Choosing VietNam Shiprepair for Steel Works
Selecting VietNam Shiprepair for Steel Works delivers speed, full class compliance, and commercial protection. We manage the entire process — from damage assessment and material certification to welding, NDT, watertight testing, and final survey — under continuous NKK supervision. With extensive experience on Panamax bulk carriers and a proven record of resolving urgent structural repairs, we minimize operational delays and protect the interests of shipowners, cargo interests, and charterers.
VietNam Shiprepair’s Commitment to Excellence
Every Steel Works project is executed with rigorous planning, NKK-approved materials and procedures, and strict safety protocols. We ensure that the renewed tank top delivers complete structural strength and watertight integrity. Choose VietNam Shiprepair for reliable, professional Marine Services.
